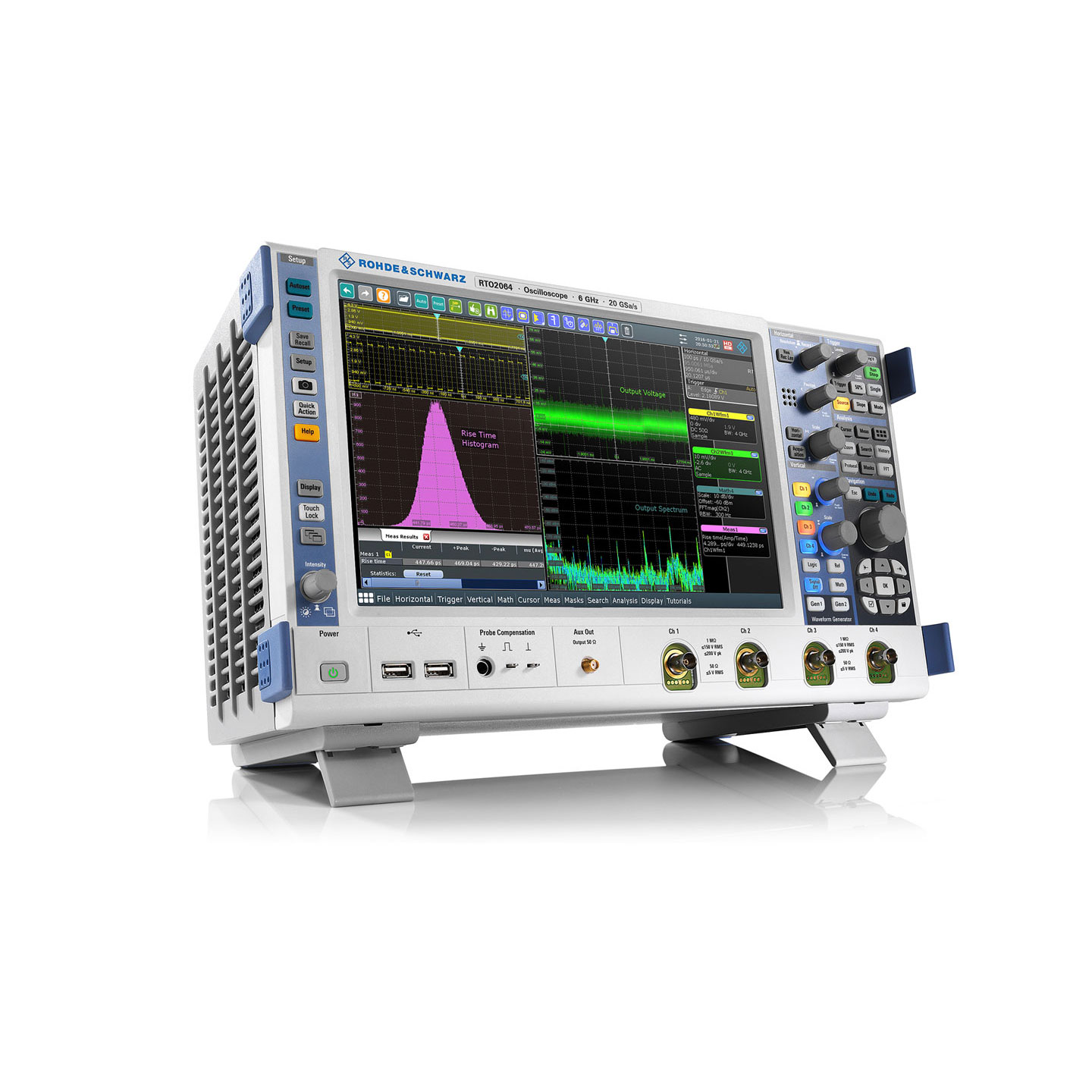

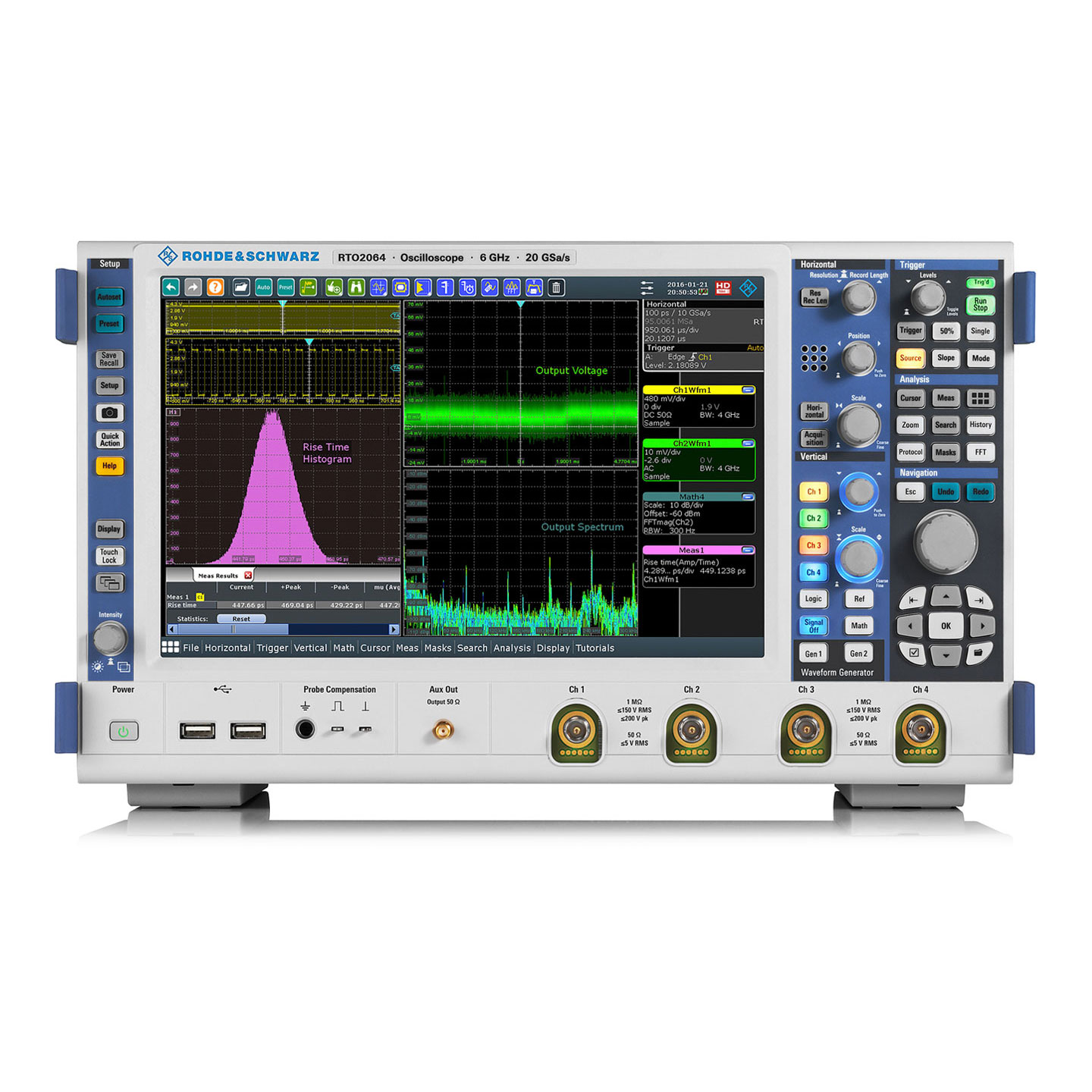

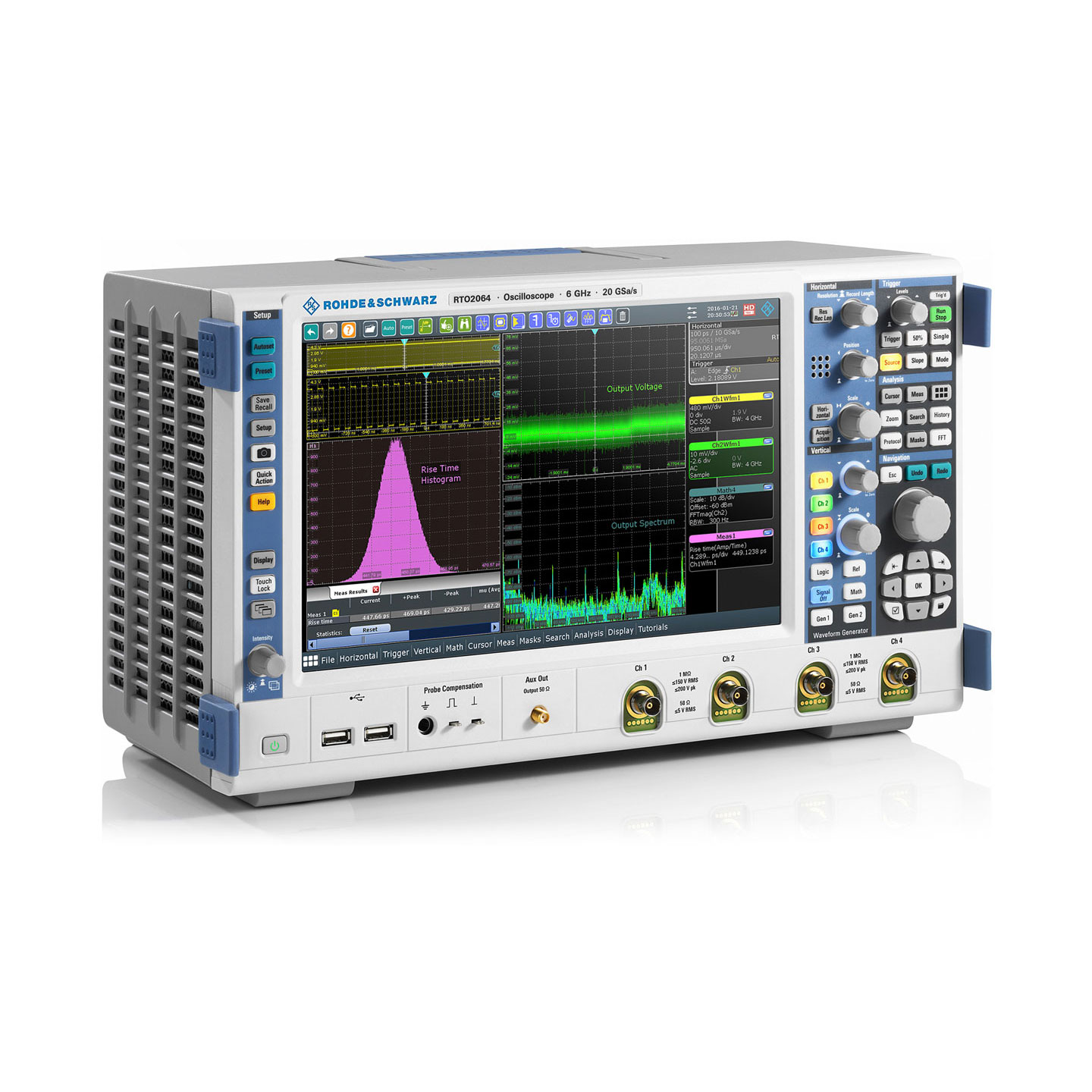

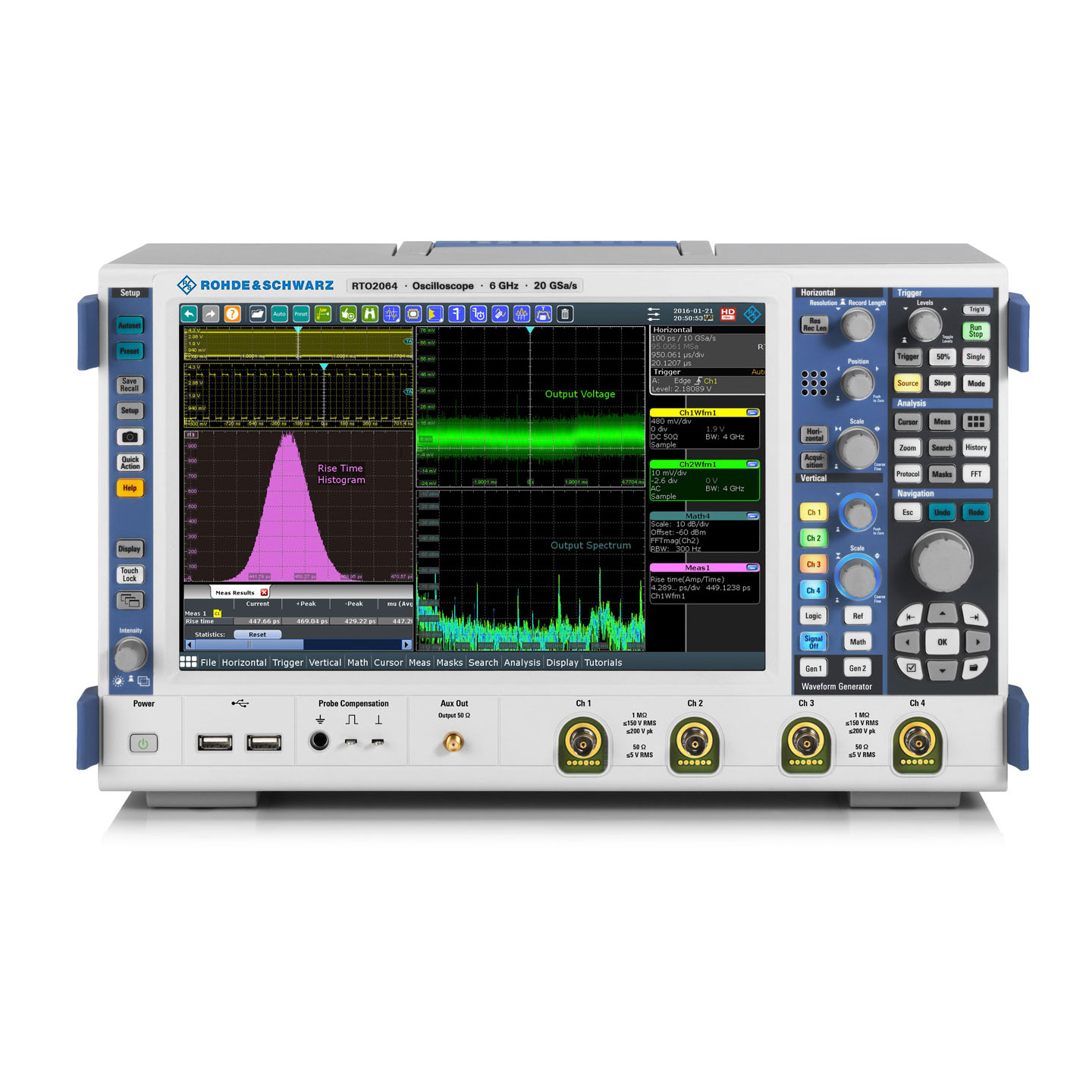

| Input channels | R&S®RTO1002/R&S®RTO1012/ R&S®RTO1022 | 2 |
| R&S®RTO1004/R&S®RTO1014/ R&S®RTO1024/R&S®RTO1044 | 4 |
| Analog bandwidth (–3 dB) at 50 Ω | R&S®RTO1002 and R&S®RTO1004 | 600 MHz |
| R&S®RTO1012 and R&S®RTO1014 | 1 GHz |
| R&S®RTO1022 and R&S®RTO1024 | 2 GHz |
| R&S®RTO1044 | 4 GHz |
| Rise time (calculated) | R&S®RTO1002 and R&S®RTO1004 | 583 ps |
| R&S®RTO1012 and R&S®RTO1014 | 350 ps |
| R&S®RTO1022 and R&S®RTO1024 | 175 ps |
| R&S®RTO1044 | 100 ps |
| Input impedance |
| 50 Ω ±1.5 %
1 MΩ ±1 % with15 pF (meas) |
| Input sensitivity | max. bandwidth in all ranges | 50 Ω: 1 mV/div to 1 V/Div
1MΩ: 1 mV/div to 10 V/Div |
| ENOB of the A/D converter | full-scale sine, frequency < –3 dB bandwidth | > 7 bit (meas) |
| Acquisition system |
| Realtime sampling rate | R&S®RTO1002/R&S®RTO1004/
R&S®RTO1012/R&S®RTO1014/
R&S®RTO1022/R&S®RTO1024 | 10 Gsample/s on each channel |
| R&S®RTO1044 | max. 10 Gsample/s on 4 channels,
max. 20 Gsample/s on 2 channels |
| Memory depth | standard configuration, per channel/1 channel active | R&S®RTO: 2-channel-model: 20 /40 Msample
R&S®RTO: 4-channel-model 20 /80 Msample |
| max. upgrade (R&S®RTO-B102 option),
per channel/1 channel active | R&S®RTO: 2-channel-model: 100 /200 Msample
R&S®RTO: 4-channel-model: 100 /400 Msample |
| Max. acquisition rate | continuous aquisition and display,
10 Gsample/s, 1 ksample | 1 000 000 waveforms/s |
| ultra-segmented-mode | < 300 ns blind time |
| Decimation modes | any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel | Sample, Peak Detect, High Resolution,
Root Mean Square |
| Waveform arithmetics |
| off, envelope, average |
| Interpolation modes |
| Linear, Sin(x)/x, Sample&Hold |
| Horizontal system |
| Time base range |
| 25 ps/div to 50 s/div |
| Time base accuracy |
| ±5 ppm |
| after delivery/calibration
R&S®RTO-B4 option | ±0.02 ppm |
| Channel deskew |
| ±100 ns (realtime deskew, channel-to-channel triggers - e.g. State - detect deskew) |
| Trigger system |
| Trigger types |
| edge, glitch, width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, serial pattern, I²C, SPI, UART/RS-232/RS-422/RS-485 optional: LIN, CAN, CAN-FD, FlexRay™, audio, MIL, ARINC, USB, MDIO, Ethernet (10BASE-T), Manchester and NRZ |
| Sensitivity | definition of trigger hysteresis | can be set autimatically or manually
from 0 div to 5 div |
| Min. detectable glitch | R&S®RTO1002/R&S®RTO1004/
R&S®RTO1012/R&S®RTO1014/
R&S®RTO1022/R&S®RTO1024 | 100 ps |
| R&S®RTO1044 | 50 ps |
| Waveform maths |
| Algebraic categories |
| mathematics, logical operations, comparison, frequency domain, digital filter |
Hardware-accelerated
mathematics | +, -, *, 1/x, |x|, derivative, log10, ln, log2, scaling,
FIR, FFT magnitude |
| Analysis and measurement functions |
| Hardware-accelerated analysis |
| spectrum, histogram, mask test, cursor |
| Hardware-accelerated measurements |
| amplitude measurements, time measurements |
| General data |
| Dimensions | W x H x D | 427 mm x 249 mm x 204 mm
(16.81 in x 9.8 in x 8.03 in) |
| Weight | R&S®RTO1024 | 9.6 kg (21.16 lb) |
| Display |
| 10.4" LC TFT color touch screen,
1024 x 768 pixels (XGA) |
| Connectivity |
| 1 Gbit/s LAN, 4 x USB 2.0, GPIB (optional), DVI for external monitor, external trigger, trigger output |
